4 Jaw Independent Chuck 360mm Pneumatic Lathe High Precision Chuck Lingman Machinery

Name: 4 Jaw Independent Chuck 360mm Pneumatic Lathe High Precision Chuck Lingman Machinery
Brand: LINGMAN
Price: 1714 USD

China 4 Jaw Independent Chuck 360mm Pneumatic Lathe High Precision Chuck Lingman Machinery factory

Brand Name : LINGMAN

Model Number : F360JF

Place of Origin : china

MOQ : 1

Price : USD 1714-4714 set

Payment Terms : T/T

Supply Ability : 100 sets per month

Delivery Time : 5-8 work days

Product Name : Square Hole Full Stroke Front Chuck F360JF

Claw stroke/diameter : 352mm

Maximun clamping : 4KN

Allowable pressure : 0.25-1MPa

Limit speed : 150r/min

Clamping range : 8-360mm

Central height : 420mm

Rotational inertia : 24kg.m²

Rotating part weight : 280kg

Whole unit weight : 420kg

Contact Now

4 Jaw Independent Chuck 360mm Pneumatic Lathe High Precision Chuck Lingman Machinery

PNEUMATIC DOUBLE-ACTING CHUNK FOR TUBE-SHEET INTEGRATED MACHINES (SQUARE HOLLOW)

This product is specially designed for laser tube cutting equipment. The product itself can be used as an independent rotatingspindle, and a chuck in it can firmly clamp work-piece and rotate simultaneously.

4 Jaw Independent Chuck 360mm Pneumatic Lathe High Precision Chuck Lingman Machinery

Performance Parameters

4 Jaw Independent Chuck 360mm Pneumatic Lathe High Precision Chuck Lingman Machinery

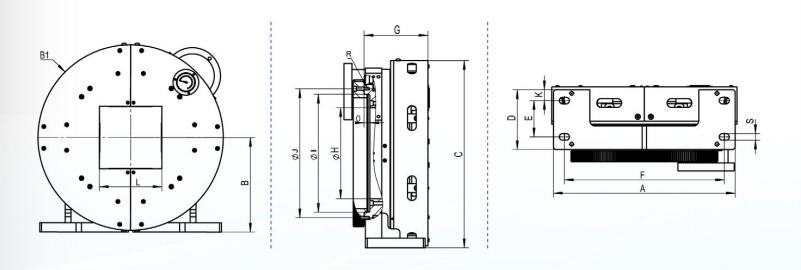

Dimensions

4 Jaw Independent Chuck 360mm Pneumatic Lathe High Precision Chuck Lingman Machinery
