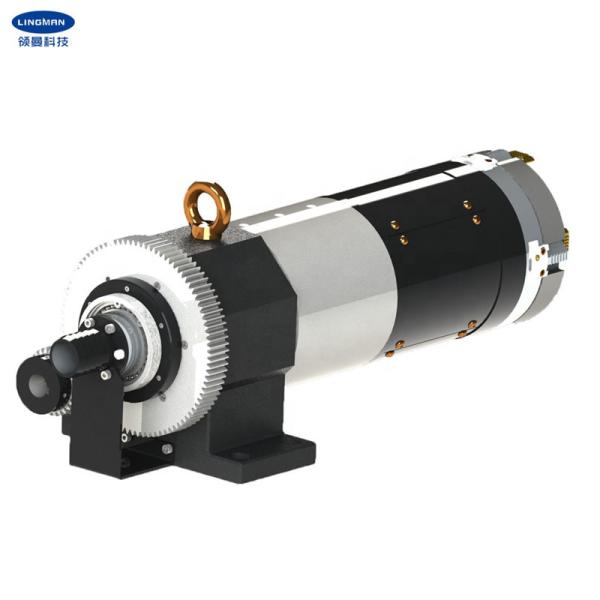

4 Jaw Pneumatic Rear Chuck For Laser Cutting Holding Pipes

4 Jaw Pneumatic Rear Chuck For Laser Cutting Holding Pipes

1. Descripition

30 workers, 5000m² workshop, 15 years experience,15 years' vendor of Chinese Chuck , ISO, CE certificated, two hour reach Shanghai port,this is how our company keep good quality and competitive prices for global valued customers.

Our laser rotary chuck is specially designed for laser tube cutting equipment. It can be used as an independent rotating spindle with a chuck which can firmly clamp workpiece and rotate simultaneously. Rotary air intake is achieved through the rotator equipped at the end to achieve fast clamping and loosening actions. The air source supplies air continuously during work.

2. Performance Parameters

Note: above numbers are standard parameters. We can also design products according to clients' special requirements.

3. Dimensions

4. Advantages

• ​a. Full stroke design
• b. Wide range of applications, diversification of processing profiles
• c. High repetitive positioning accuracy
• d. Low maintenance cost, long service life
• e. Multiple configurations are available​

e.1 Solid or hollow
e.2 Comb-type or mortise-groove type claws

5. Product Line

6. Our Service

• a.We are the direct factory with good price and fast lead time.
• b.Professional design team work with you.
• c.Professional QC team to guarantee the high quality.
• d.Providing OEM & ODM service.
